SLAB Thickness Gauge, Silicon Wafer, Timber, Building Material Board, Non-woven Fabric, The  other Sheet natural endowment Thickness Gauge.

 We provide high precision, high stability of thickness gauge, sensor and real time management   program.

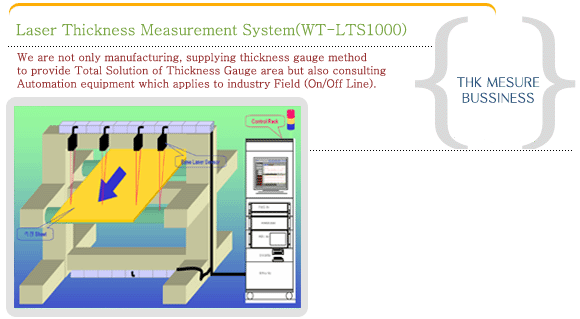

< 3 Point Immobile Type Measurement (On-Line) >

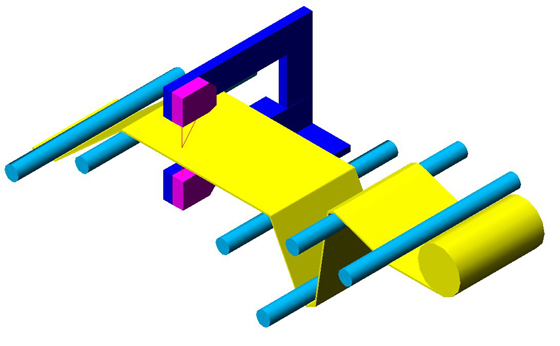

                           < Sensor Movement Type Measurement (On-Line) >



< Sensor Movement Type Measurement (Off- Line) >



 < Sensor Immobile Type Measurement (On-Line) >

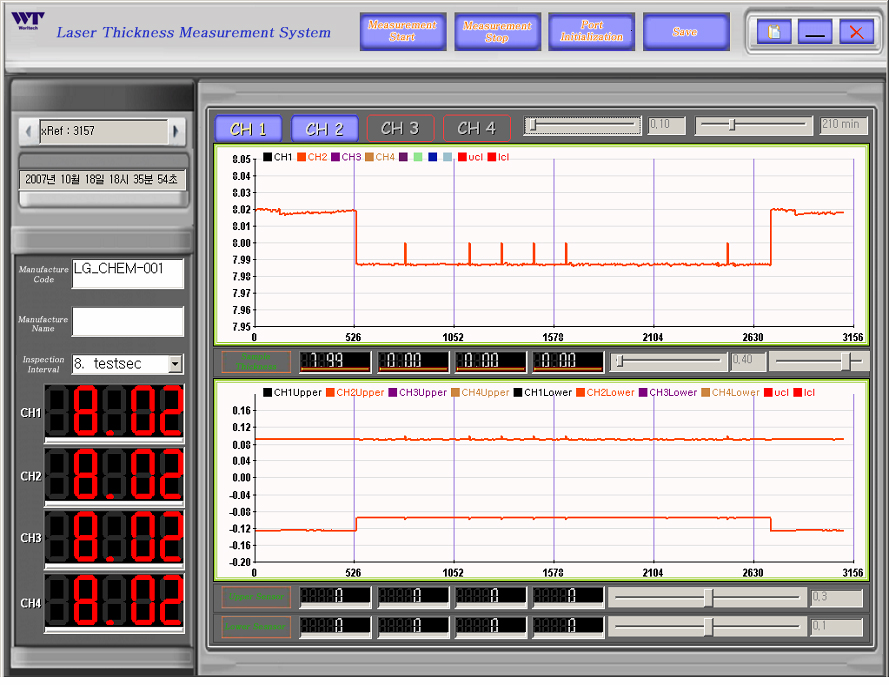

¡ß Laser Thickness Measurement System S/W Program Example.

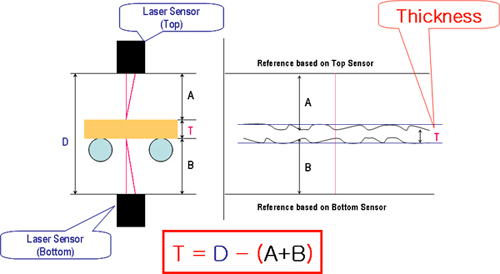

 It measures from sensor to measurement object of the upper part distance by using a laser sensor 1.  And, by using laser sensor 2, WT-LST1000 works from sensor to measurement object of the lower part  distance. After gauging sensor distance(D), ¡±T¡± is the measurement object thickness, D-(A+B).

Measurement Thickness T = D-(A+B)



 Meansurement Method : Laser Displacement Measurement

 Sensor Resolution : 1um (High Accuracy)

 Sensor Accuracy : ±0.05% of F.S(F.S. =±100mm)

 data Transfer : RS-232/422 Protocol

 Terms of system delivery : within 3month after order.



¡ß Non-Contact Thickness Measurement System Aplication Instance

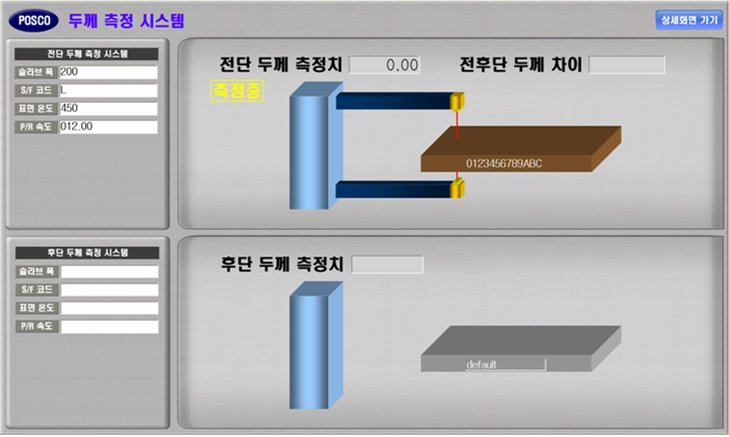

                       < Posco Slab Thickness Measurement System >





 ¡Ø Please call or e-mail on quotation and technical inquires or Consultation.

   Please give us detail information on the measurement conditions (ON-Line,     Off-Line),      measurement object feature (The quality of the material, Thickness, Length etc.), Data Display      method (EX : At work place display with LCD, Or Computer S/W process). Then, we could      provide accurate answer.
